This is the third assignment for the machine learning for data analysis course, fourth from a series of five courses from Data Analysis and Interpretation ministered by Wesleyan University. The previous content you can see here.

In this assignment, we have to run a Lasso Regression Analysis.

My response variable is the number of new cases of breast cancer in 100,000 female residents during the year 2002 (breastCancer100th). My first explanatory variable is the mean of sugar consumption quantity (grams per person and day) between the years 1961 and 2002. My second explanatory variable is the mean of the total supply of food (kilocalories / person & day) available in a country, divided by the population and 365 between the years 1961 and 2002. My third explanatory variable is the average of the mean TC (Total Cholesterol) of the female population, counted in mmol per L; (calculated as if each country has the same age composition as the world population) between the years 1980 and 2002.

All variables used in this assignment are quantitative.

All of the images posted in the blog can be better view by clicking the right button of the mouse and opening the image in a new tab.

The complete program for this assignment can be download here and the dataset here.

You also can run the code using jupyter notebook by clicking here.

Running a Lasso Regression Analysis

The first thing to do is to import the libraries and prepare the data to be used.

import pandas
import statistics
import numpy as np
import matplotlib.pylab as plt
from sklearn.cross_validation import train_test_split
from sklearn.linear_model import LassoLarsCV
from sklearn import preprocessing

# bug fix for display formats to avoid run time errors
pandas.set_option('display.float_format', lambda x:'%.2f'%x)

#load the data
data = pandas.read_csv('separatedData.csv')

# convert to numeric format
data["breastCancer100th"] = pandas.to_numeric(data["breastCancer100th"], errors='coerce')
data["meanSugarPerson"]   = pandas.to_numeric(data["meanSugarPerson"], errors='coerce')
data["meanFoodPerson"]   = pandas.to_numeric(data["meanFoodPerson"], errors='coerce')
data["meanCholesterol"]   = pandas.to_numeric(data["meanCholesterol"], errors='coerce')

# listwise deletion of missing values
sub1 = data[['breastCancer100th', 'meanFoodPerson', 'meanCholesterol', 'meanSugarPerson']].dropna()

#Split into training and testing sets
predvar = sub1[[ 'meanSugarPerson', 'meanFoodPerson', 'meanCholesterol']]
targets = sub1['breastCancer100th']

To run the Lasso Regression Analysis we must standardize the predictors to have mean = 0 and standard deviation = 1.

# standardize predictors to have mean=0 and sd=1
predictors = predvar.copy()
predictors['meanSugarPerson']=
    preprocessing.scale(predictors['meanSugarPerson'].astype('float64'))
predictors['meanFoodPerson']=
    preprocessing.scale(predictors['meanFoodPerson'].astype('float64'))
predictors['meanCholesterol']=
    preprocessing.scale(predictors['meanCholesterol'].astype('float64'))

# split data into train and test sets - Train = 70%, Test = 30%
pred_train, pred_test, tar_train, tar_test = train_test_split(predictors, targets,
                                                              test_size=.3, random_state=123)

# specify the lasso regression model
model=LassoLarsCV(cv=10, precompute=False).fit(pred_train,tar_train)

# print variable names and regression coefficients
dict(zip(predictors.columns, model.coef_))

{'meanCholesterol': 16.739257253156911,
 'meanFoodPerson': 2.6688475418098832,
 'meanSugarPerson': 2.5710138593832852}

# plot coefficient progression
m_log_alphas = -np.log10(model.alphas_)
ax = plt.gca()
plt.plot(m_log_alphas, model.coef_path_.T)
plt.axvline(-np.log10(model.alpha_), linestyle='--', color='k',
            label='alpha CV')
plt.ylabel('Regression Coefficients')
plt.xlabel('-log(alpha)')
plt.title('Regression Coefficients Progression for Lasso Paths')

# plot mean square error for each fold
m_log_alphascv = -np.log10(model.cv_alphas_)
plt.figure()
plt.plot(m_log_alphascv, model.cv_mse_path_, ':')
plt.plot(m_log_alphascv, model.cv_mse_path_.mean(axis=-1), 'k',
         label='Average across the folds', linewidth=2)
plt.axvline(-np.log10(model.alpha_), linestyle='--', color='k',
            label='alpha CV')
plt.legend()
plt.xlabel('-log(alpha)')
plt.ylabel('Mean squared error')
plt.title('Mean squared error on each fold')

# MSE from training and test data
from sklearn.metrics import mean_squared_error
train_error = mean_squared_error(tar_train, model.predict(pred_train))
test_error = mean_squared_error(tar_test, model.predict(pred_test))
print ('training data MSE')
print(train_error)
print ('test data MSE')
print(test_error)

training data MSE
167.849476371
test data MSE
209.885898511

# R-square from training and test data
rsquared_train=model.score(pred_train,tar_train)
rsquared_test=model.score(pred_test,tar_test)
print ('training data R-square')
print(rsquared_train)
print ('test data R-square')
print(rsquared_test)

training data R-square
0.71692405706
test data R-square
0.633973360069

A lasso regression analysis was conducted to identify a subset of variables from a pool of 3 quantitative predictor variables that best predicted a quantitative response variable measuring the incidence of breast cancer in countries. As mentioned above, the explanatory variables were:

• The mean of sugar consumption quantity (grams per person and day) between the years 1961 and 2002.
• The mean of food consumption (grams per day) between the years 1961 and 2002.
• The average of the Total Cholesterol mean of the female population (mmol/L) between the years 1980 and 2002 (meanCholesterol).

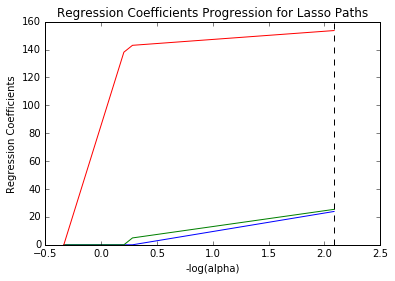

No variables were removed and the variable that is most strongly associated with the incidence of cancer is the cholesterol in the blood, followed by food consumption and then sugar consumption (figure 1).

The data were randomly split into a training set that included 70% of the observations (N=90) and a test set that included 30% of the observations (N=39). The least angle regression algorithm with k=10 fold cross-validation was used to estimate the lasso regression model in the training set, and the model was validated using the test set. The change in the cross-validation average (mean) squared error at each step was used to identify the best subset of predictor variables.

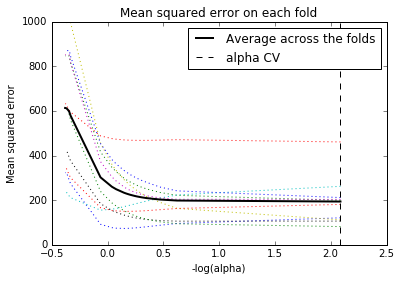

We can see in figure 2 that there is variability across the individual cross-validation folds in the training data set, but the change in the mean square error as variables are added to the model follows the same pattern for each fold.

The selected model was more accurate in predicting the incidence of breast cancer in the test data. The R-square values were 0.72 and 0.63, indicating that the selected model explained 72 and 63% of the variance in incidence of breast cancer for the training and test sets, respectively.

Running a Lasso Regression Analysis whitout split training and test

As my data set has a relatively small number of observations, I run the lasso regression analysis without split it into training and test data sets. You can see the code and the output here.

The results were:

• The variable names and regression coefficients:

{'meanCholesterol': 14.454522951763355,
 'meanFoodPerson': 5.6180418717114913,
 'meanSugarPerson': 1.1077912357101849}

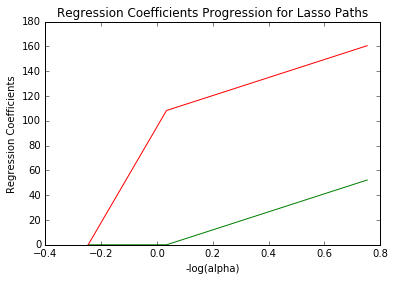

• Coefficient progression:

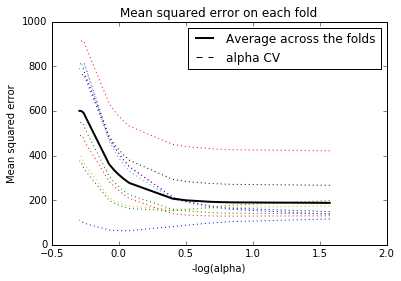

• Mean square error for each fold:

• MSE from data:

Data MSE
176.079857367

• R-square from data:

R-square
0.700067190794

In general, the results were pretty close compared when running the previous lasso regression analysis.

No variables were removed and the variable that is most strongly associated with the incidence of cancer were the same in the same order.

The variability across the individual cross-validation folds in the training data set has behaved in a similar way.

At least, the R-square value was 0.70, indicating that the selected model explained 70% of the variance in incidence of breast cancer.
